An induction coil heaterutilizes electromagnetic induction to generate heat in conductive materials. This method ensures precise, contactless heating with remarkable efficiency. For instance, induction achieves up to 84% efficiency compared to 40% for gas systems. Industries like automotive and aerospace rely on this technology for its safety, precision, and environmental benefits. Additionally, the Portable Handheld Induction Heater offers flexibility for on-the-go applications, while Induction Brazing Equipmentenhances the capabilities of metal joining processes, making it an essential tool in various manufacturing sectors.

Key Takeaways

• Induction coil heaters use magnetic fields to heat things quickly. They are up to 84% efficient, better than gas systems.

• These heaters control temperature well, making them great for metalwork, cars, and planes where exact heat is needed.

• Induction heating is safe and eco-friendly. It has no flames and lowers CO2, helping the environment.

How Induction Heating Works

The Principle of Electromagnetic Induction

Induction heating relies on the principle of electromagnetic induction. When you pass an alternating current (AC) through a coil, it generates a rapidly changing magnetic field. This magnetic field interacts with a conductive material placed within the coil, inducing electrical currents in the material. These induced currents, known as eddy currents, produce heat due to the material's resistance. This process allows you to heat materials efficiently without direct contact, making it ideal for applications requiring precision and cleanliness.

The Role of Eddy Currents in Heating

Eddy currents play a crucial role in the induction heating process.

• These currents form when a fluctuating magnetic field penetrates a conductive object.

• As they flow through the material's resistance, they generate heat through the Joule heating effect.

• This mechanism is the primary source of heat in an induction heating system.

Even non-magnetic materials can heat up due to eddy currents, making induction heating versatile. The losses caused by these currents, known as eddy-current losses, significantly contribute to the overall heating efficiency.

The Skin Effect and Its Impact on Heating Efficiency

The skin effect influences how efficiently induction heating works. When AC flows through a conductor, it tends to concentrate near the surface. This phenomenon reduces the current density as you move deeper into the material. The depth at which the current flows, called the skin depth, depends on the AC frequency. Higher frequencies result in shallower skin depths, making them suitable for heating smaller parts. Lower frequencies allow deeper penetration, which is better for larger components. By adjusting the frequency, you can optimize the induction heating process for different applications.

Key Components of an Induction Coil Heater

Understanding the components of an induction coil heater is essential to grasp how it operates efficiently. Each part plays a critical role in ensuring effective heating performance.

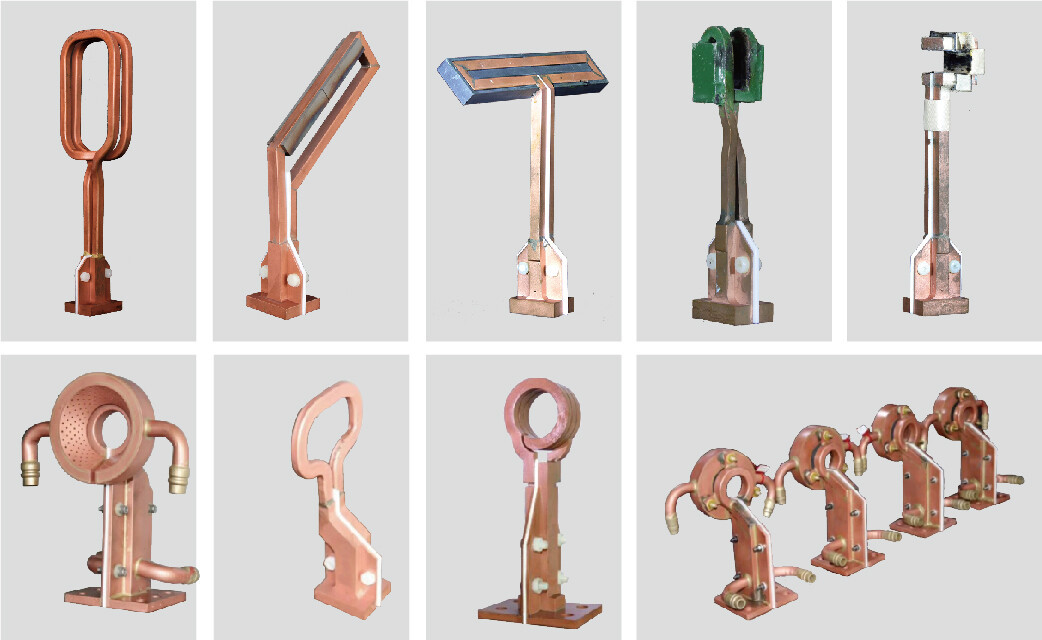

The Induction Coil: Design and Functionality

The induction coil is the heart of the system. It transfers energy from the power unit to the workpiece, enabling the heating process. The coil's design significantly impacts efficiency. For instance:

• Coils must match the shape of the workpiece to ensure uniform heat distribution.

• Multi-turn coils are ideal for larger parts, but they may require careful bracing to maintain stability during operation.

• High-conductivity copper tubing is often used to enhance cooling and performance.

Close coupling between the coil and the workpiece improves current flow, leading to faster and more efficient heating. By optimizing the coil's design, you can achieve precise and consistent results.

Power Supply and Frequency Control

The power supply is the backbone of the induction coil heater. It converts standard AC power into high-frequency AC, which is essential for generating the electromagnetic field. Key features include:

• Frequency control, which allows you to adjust the depth of heat penetration. Higher frequencies are suitable for surface heating, while lower frequencies work better for larger components.

• Precise voltage regulation, enabling accurate temperature control to maintain the metallurgical properties of materials.

• High energy efficiency, often exceeding 97%, which reduces energy consumption and operational costs.

This combination of power and control ensures the system delivers rapid and reliable heating.

Cooling Systems for Heat Management

Efficient cooling is vital to prevent overheating and maintain the system's longevity. Cooling systems typically use water or air to dissipate excess heat from the induction coil and other components. Considerations for effective cooling include:

• Proper tubing selection, such as copper, to enhance heat transfer.

• Regular monitoring of outlet water temperature to avoid exceeding safe limits, such as 50℃.

• Adequate space and facility requirements to accommodate cooling equipment.

By managing heat effectively, you can ensure the induction coil heater operates safely and efficiently over time.

Benefits of Induction Heating

Energy Efficiency and Precision Heating

Induction heating stands out for its exceptional energy efficiency. Unlike traditional methods, it minimizes wasted heat by transferring energy directly to the material. Studies show that induction systems can achieve up to 84% efficiency, compared to 40% for gas-based systems. This direct energy transfer not only saves power but also reduces operational costs. For batch processes, induction heating consumes energy only when needed, eliminating the waste associated with keeping ovens or furnaces running.

Precision is another key advantage. Induction heating allows you to control temperatures with remarkable accuracy, ensuring uniform heat distribution across the material. This capability is critical for applications requiring specific temperature gradients or maintaining material properties. Whether you need localized heating or consistent results across a workpiece, induction technology delivers unmatched precision.

Safety and Environmental Friendliness

Induction heating offers a safer alternative to traditional methods. It eliminates open flames and exposed heating elements, significantly reducing fire risks and the chances of operator injuries. The absence of hot surfaces also minimizes burn hazards, making it ideal for environments where safety is a priority. Additionally, induction systems improve air quality by avoiding combustion byproducts, which is especially beneficial in industries handling flammable materials.

From an environmental perspective, induction heating contributes to sustainability. It operates without fossil fuels, preventing harmful CO2 emissions and reducing the carbon footprint. The focused heating process minimizes waste and conserves energy, making it an eco-friendly choice for modern industries.

Versatility Across Different Materials

Induction heating is highly versatile, capable of heating a wide range of materials. It works effectively with metals like iron, steel, copper, and aluminum, as well as specialized alloys and silicon. By adjusting the frequency and power, you can tailor the heating process to suit the material's properties. This adaptability makes induction heating suitable for diverse applications, from metalworking to advanced manufacturing processes.

Moreover, induction technology extends beyond metals. It plays a role in waste conversion, tire recycling, and even carbon fiber production. This versatility ensures that induction heating remains a valuable tool across various industries, addressing both traditional and emerging needs.

Applications of Canroon's Induction Coil Heaters

Industrial Uses: Metalworking and Manufacturing

Canroon's induction coil heaters excel in industrial applications, particularly in metalworking and manufacturing. These heaters provide precise and efficient heating, which is essential for improving material properties and ensuring strong bonds in metal components. You can use them for processes like hardening, annealing, tempering, brazing, and soldering. Their ability to deliver rapid and localized heat placement ensures minimal impact on surrounding components, making them ideal for high-precision tasks.

Here are some common applications:

• Brazing: Joins metals to create strong, reliable bonds.

• Hardening: Strengthens metals to enhance durability.

• Annealing: Softens metals for better machinability.

• Soldering: Similar to brazing but used for smaller-scale metal joining.

By using Canroon's induction coil heaters, you can achieve consistent results while optimizing energy consumption and reducing processing times.

Automotive and Aerospace Applications

In the automotive and aerospace industries, Canroon's induction heating technology plays a critical role. It enhances productivity by increasing production speed and simplifying tooling. You can rely on its precise heat control to prevent discoloration and maintain the integrity of components. This hands-free heating method requires minimal operator skill, making it highly efficient.

Induction heating is extensively used for manufacturing gears, shafts, and bearings. These components are vital for ensuring the durability and performance of vehicles and aircraft. The technology also supports the production of lightweight materials, which are essential for fuel efficiency and safety in aerospace applications.

Emerging Applications in Medical and Consumer Products

Canroon's induction coil heaters are finding innovative uses in the medical and consumer product sectors. In medical applications, you can use them for induction casting of dentures and implants, catheter tipping, and sterilizing pharmaceutical connections. These heaters also enable precise heat treatment of memory alloys and heating for IV devices.

In consumer products, induction technology supports the production of high-quality items like orthodontic parts and surgical tools. Its ability to deliver rapid and localized heating ensures reliable bonds and consistent results, making it a valuable tool in these emerging fields.

Induction coil heaters utilize electromagnetic fields to induce currents in conductive materials, generating heat efficiently. This technology offers unmatched energy efficiency, safety, and versatility compared to traditional methods. Its rapid heating and precise control make it indispensable across industries like automotive, aerospace, and manufacturing, driving innovation and sustainability in modern applications.

FAQ

What materials can you heat with an induction coil heater?

You can heat metals like steel, copper, aluminum, and specialized alloys. Non-metals, such as carbon fiber, can also be processed in specific applications.

Tip: Adjust the frequency to match the material's properties for optimal results.

How do you maintain an induction coil heater?

Regularly inspect the coil for wear, clean cooling systems, and monitor water temperature. Proper maintenance ensures efficiency and extends the system's lifespan.

Is induction heating environmentally friendly?

Yes, induction heating eliminates combustion, reducing CO2 emissions. Its energy efficiency and precise heating minimize waste, making it a sustainable choice for modern industries.

Note: Using induction heating supports eco-friendly manufacturing practices.
