A variable frequency drive (VFD) is essential for controlling motor speed and torque by adjusting power frequency and voltage. This VFD Frequency Converter technology optimizes energy use across various industries. For instance:

• Cooling applications can save up to 35% energy.

• HVAC fans can reduce energy consumption by 70%.

• Slowing motor speed to 80% can cut annual costs by over 50%.
  Additionally, our Shenzhen Factory OEM/ODM VFD solutions provide tailored options to meet specific operational needs.

Key Takeaways

• Variable Frequency Drives (VFDs) save energy by changing motor speed. They can cut energy use by up to 50%.

• VFDs help HVAC systems use less energy. They improve temperature control and lower running costs.

• VFDs make machines last longer by reducing wear during start and stop. This lowers repair costs.

How a VFD Works

Key Components of a Variable Frequency Drive

A variable frequency drive consists of several key components that work together to control motor speed and torque. These include:

• Converter (Rectifier): This component converts incoming AC power into DC power.

• Filter: It smooths and stabilizes the DC voltage, ensuring consistent performance.

• Inverter: The inverter switches the DC power on and off rapidly, creating a pulsating voltage that mimics AC power. This allows you to control the motor's speed effectively.

Each of these components plays a vital role in ensuring the VFD operates efficiently and provides precise motor control.

Frequency and Voltage Adjustment in Motor Control

A VFD adjusts the frequency and voltage supplied to the motor to control its speed and torque. For example:

• Reducing the motor frequency to 30 Hz requires a proportional reduction in voltage to maintain the correct voltage-to-frequency (V/Hz) ratio.

• This adjustment is achieved using Pulse Width Modulation (PWM), which rapidly switches the inverter's output transistors to control the average voltage output.

By varying the frequency and voltage, the VFD ensures proper magnetization of the motor, allowing it to maintain torque and efficiency across different speeds. In applications like HVAC systems, this adjustment optimizes performance by matching the motor's load without running it at full speed.

Step-by-Step Operation of a VFD

The operation of a VFD involves several sequential steps:

1. Drive Input Stage: Alternating current enters the VFD.

2. Housekeeping: Current transformers measure and compare the input and output currents, checking for faults and preventing damage with a pre-charge circuit.

3. Drive and Drive Output Stage: The rectifier converts AC power into DC power.

4. DC Bus: The DC power is buffered and filtered to ensure consistent voltage across all capacitors.

5. IGBTs (Insulated Gate Bipolar Transistors): The filtered DC power is converted back into AC power, with controlled phases and frequency using PWM.

6. Motor and Drive Train Stage: The PWM output regulates the motor's speed and mechanical output.

This process allows you to control an AC induction motor with precision, improving energy efficiency and performance.

Benefits of a Variable Frequency Drive

Energy Savings and Cost Efficiency

A variable frequency drive offers significant energy-saving benefits by adjusting motor speed to match the actual load. This reduces unnecessary energy consumption and lowers utility bills. For instance:

• At 63% speed, a motor load uses only 25% of its full-speed power, making it highly efficient in variable-torque applications.

• Cooling systems can achieve up to 35% energy savings by regulating motor speed instead of running at full capacity.

You can also reduce costs by minimizing energy waste. VFDs allow precise control of motor functions, which enhances operational efficiency. In some cases, energy consumption drops by up to 50%, leading to substantial savings and a smaller carbon footprint.

Enhanced Process Control

With a VFD, you gain precise control over motor speed and torque. This is achieved by converting AC power to DC and back to AC with adjustable frequency and voltage. The control system continuously monitors motor parameters and adjusts output in real time. This ensures optimal performance for your processes.

By operating motors at variable speeds, VFDs eliminate the need for mechanical devices that waste energy. For example, in HVAC systems, they regulate airflow based on demand, improving efficiency and reducing wear on components. This level of control enhances productivity and ensures consistent results in industrial applications.

Prolonged Equipment Lifespan

VFDs protect your equipment by reducing mechanical and electrical stress. Soft-start and soft-stop capabilities prevent sudden shocks during startup and shutdown. This minimizes wear on motor components and extends their lifespan.

Additionally, VFDs help avoid resonant frequencies that cause excessive vibration. By allowing motors to run at lower speeds when full capacity isn’t required, they reduce heat generation and mechanical stress. This not only prolongs the life of your equipment but also lowers maintenance costs over time.

Applications of VFDs

HVAC Systems

In HVAC systems, VFDs play a crucial role in improving energy efficiency and performance. By adjusting motor speeds to match varying loads, they significantly reduce energy consumption compared to traditional systems that run motors at full speed. You can use a variable frequency drive to:

• Control the speed of fans and pumps.

• Modulate fan speed in air handling units.

• Regulate compressor speed in chiller systems.

• Manage fan speed in cooling towers.

• Handle variable flow rates in pumping systems.

These capabilities allow you to optimize airflow, temperature control, and overall system performance. VFDs also help balance fan and pump operations, monitor equipment, and reduce energy usage during peak load conditions. This makes them an essential component in modern HVAC applications.

Industrial Machinery

In industrial settings, VFDs enhance the performance of machinery by providing precise motor control. They allow you to adjust motor speed and torque to match the specific requirements of your processes. This flexibility improves productivity and reduces wear on equipment. For example, in conveyor systems, a VFD can regulate speed to ensure smooth material handling. Similarly, in manufacturing, it enables accurate control of machine tools, improving product quality. By reducing mechanical stress and energy waste, VFDs contribute to both cost savings and prolonged equipment lifespan.

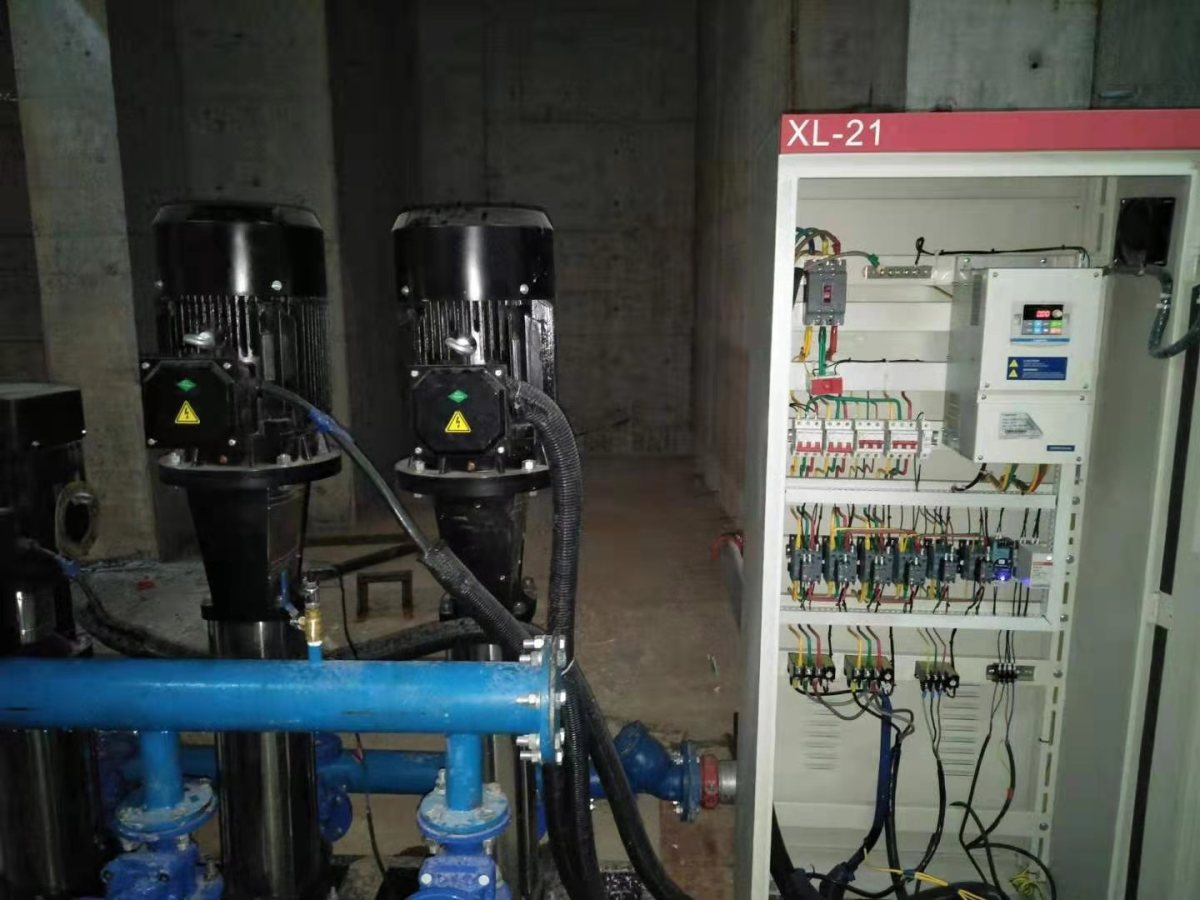

Pumps and Fans

VFDs are particularly effective in applications involving pumps and fans. They allow motors to operate at variable speeds, which can significantly reduce energy consumption. For instance:

1. A motor running at 80% of its full speed can cut energy use by up to 50%.

2. The cubic relationship between speed and power consumption means even small speed reductions lead to substantial energy savings.

By enabling precise speed control, VFDs help match motor output to actual load requirements. This reduces mechanical stress, extends equipment lifespan, and lowers maintenance costs. Whether you’re managing water flow in a pumping system or airflow in an industrial fan, a VFD ensures optimal performance and energy saving.

Variable Frequency Drives (VFDs) offer numerous advantages for motor control.

• They enhance efficiency by adjusting motor speed and torque, reducing energy consumption by up to 50%.

• Businesses benefit from lower utility bills, reduced maintenance costs, and extended equipment life.

• By optimizing motor performance, VFDs support sustainability and improve process accuracy, making them essential for modern applications.
