Induction brazing tools utilize electromagnetic induction to heat and join materials with a filler metal, creating strong and precise joints in industries such as automotive and aerospace. For instance, they are used to bond fuel lines, brake linings, and heat exchangers. An Induction Heating Machine or a Customizable Electric Brazing Machine guarantees efficiency and reliability in production, while the Induction Brazing Machine enhances the overall brazing process.

Key Takeaways

• Induction brazing tools use magnetic energy to heat materials. This helps make strong and accurate joints in cars and planes.

• The process includes cleaning surfaces, adding flux, and heating with a coil. The filler metal melts and bonds the materials together tightly.

• These tools save energy, are safe, and can be used in many ways. They work well for different jobs in many industries.

How Induction Brazing Tools Work

The Principle of Induction Heating

Induction heating relies on electromagnetic induction to generate heat. When you expose a conductor to a changing magnetic field, it forms eddy currents. These currents create heat due to electrical resistance. This process ensures precise and localized heating, which is essential for brazing. Alternating current flows through an induction coil, producing a magnetic field. This field induces eddy currents in the conductive material, generating heat. The heat melts the filler metal, which flows into the joint between the base materials. Once cooled, the filler metal solidifies, forming a strong bond.

Key Components of Induction Brazing Tools

Induction brazing tools consist of several key components that work together to achieve efficient brazing:

• Power Supply: Converts electrical energy to provide the required frequency and power for induction heating.

• Induction Coil: Produces the alternating magnetic field necessary for heating.

• Cooling System: Prevents overheating by dissipating heat generated during the process.

• Control System: Regulates time, temperature, and other parameters to ensure precision.

Each component plays a vital role in delivering consistent and reliable results.

Step-by-Step Brazing Process

To use induction brazing tools effectively, follow these steps:

1. Design the joint with a clearance of 40µm to 125µm at the filler metal’s flow temperature.

2. Clean the surfaces of the materials to remove contaminants.

3. Apply flux to eliminate oxides and prevent oxidation during heating.

4. Position the materials with a braze ring or pre-form in the induction coil.

5. Heat the materials until the filler metal melts and flows into the joint.

6. Clean the brazed joint to remove flux residue.

This process ensures a strong and durable bond between the materials.

Applications of Induction Brazing Tools

Automotive Industry

Induction brazing tools play a vital role in automotive manufacturing. They are used to assemble components that require strong and reliable joints. For example, these tools are essential for brazing fuel lines, air conditioning systems, and brake linings. The process ensures precision and consistency, which are critical for safety and performance.

This technology also enhances efficiency in producing heat exchangers and hydraulic lines, ensuring leak-proof and durable connections.

Aerospace Industry

In aerospace, induction brazing tools ensure precision and repeatability. The process minimizes metallurgical changes and reduces part distortion, which is crucial for high-performance components. You can rely on these tools to create durable joints that withstand extreme operational stresses and temperatures.

• Induction heating ensures consistent quality for critical parts.

• It meets the stringent standards required for aircraft safety and reliability.

• The targeted heat application prevents damage to surrounding materials.

This method is indispensable for manufacturing components like turbine blades, fuel systems, and structural assemblies.

Electronics and Electrical Industry

Induction brazing tools are indispensable for assembling delicate electronic and electrical components. They provide precise heating, which prevents damage during the process. These tools are commonly used to join connectors, terminals, and other small parts in electronic devices.

• The method ensures consistent joint quality, which is essential for reliable electronics.

• It is ideal for creating strong connections in circuit boards and power systems.

• The localized heating prevents overheating of sensitive components.

This precision makes induction brazing a preferred choice for modern electronics manufacturing.

HVAC and Medical Devices

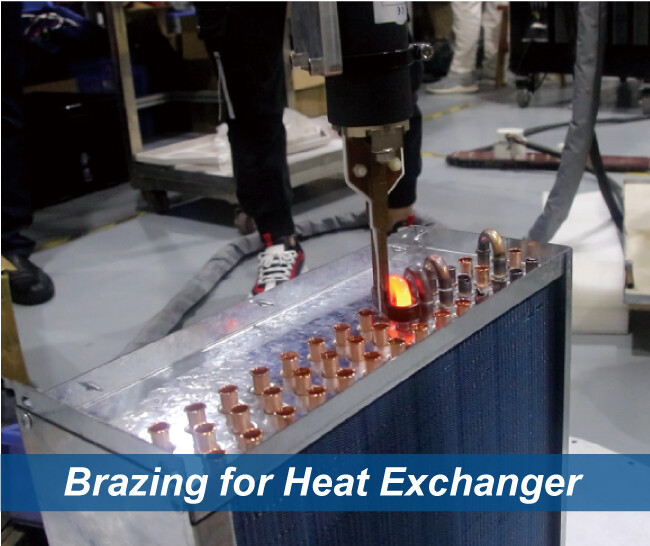

In HVAC systems, induction brazing ensures leak-proof joints in piping and heat exchangers. This is critical for efficient thermal management. The process works well with copper and aluminum pipes, offering unmatched versatility.

In the medical sector, induction brazing tools provide clean and precise joins. This precision is essential for maintaining the integrity of medical devices. The localized heat application ensures product purity and strength, meeting the tight tolerances required for tools like surgical instruments and diagnostic equipment.

Tip: Induction brazing tools are ideal for industries requiring precision, durability, and efficiency in their manufacturing processes.

Advantages of Induction Brazing Tools

Precision and Consistency

Induction brazing tools deliver unmatched precision in heating. You can control the heat application to target only the joint area, which prevents overheating and protects nearby materials. This localized heating ensures uniformity, reducing the risk of distortion and maintaining the structural integrity of components. Whether you’re working on high-volume production or intricate assemblies, these tools guarantee consistent joint quality. The quick heating process also minimizes production time, making it ideal for industries requiring efficiency and reliability.

• Precise heat control prevents damage to surrounding materials.

• Uniform heat application ensures strong and durable joints.

• Consistent results make it suitable for large-scale manufacturing.

Energy Efficiency and Speed

Induction brazing tools are highly energy-efficient. They generate heat directly within the material, eliminating the need to warm up an entire furnace or surrounding air. This focused energy transfer reduces energy consumption, saving costs and lowering your environmental impact. The short heating cycle allows you to process more parts in less time, boosting productivity. Compared to traditional methods like flame or furnace brazing, induction brazing completes the process significantly faster, enhancing overall operational efficiency.

Safety and Environmental Benefits

Induction brazing tools prioritize safety and environmental sustainability. The absence of open flames reduces fire hazards and eliminates harmful emissions. Automatic shut-off mechanisms enhance operational safety by preventing accidents. The precise heat control minimizes oxidation risks, preserving material quality and preventing the release of harmful gases. This clean and controlled process makes induction brazing a preferred choice for industries with strict environmental regulations.

• No byproducts or emissions are produced.

• The process avoids fuel combustion, making it cleaner.

• Suitable for environmentally regulated industries.

Versatility Across Materials

Induction brazing tools work with a wide range of materials, making them incredibly versatile. You can use them to join metals like steel, stainless steel, copper, brass, aluminum, and even nickel or titanium alloys. For non-metallic materials like ceramics, the heat transfers through conduction from surrounding metallic parts. This adaptability allows you to tackle diverse applications, from automotive components to medical devices, with confidence.

• Compatible materials include:

  • Steel

  • Copper

  • Aluminum

  • Titanium alloys

This versatility ensures that induction brazing tools meet the needs of various industries, offering reliable performance across different materials.

Induction brazing tools offer unmatched precision and efficiency for modern manufacturing. You can rely on their rapid heating and localized heat control to achieve consistent results.

• Quick heating reduces production time.

• Precise temperature control ensures uniform quality.

• Clean joints minimize post-braze cleaning.

• Enhanced safety eliminates fire hazards.

To select the right tool, consider these factors:

1. Match power requirements to your application.

2. Choose frequency based on heating depth.

3. Ensure the coil design fits your components.

4. Verify the cooling system’s reliability.

Explore these tools to meet your manufacturing needs or consult experts for tailored solutions.

FAQ

What materials can you braze with induction brazing tools?

You can braze metals like steel, copper, aluminum, and titanium alloys. For ceramics, heat transfers through conduction from surrounding metallic parts.

How do you choose the right induction brazing tool?

Match the tool's power and frequency to your application. Ensure the coil design fits your components and verify the cooling system's reliability.

Are induction brazing tools safe to use?

Yes, they are safe. These tools eliminate open flames, reducing fire hazards. Automatic shut-off mechanisms and precise heat control enhance operational safety.

Tip: Always follow the manufacturer's safety guidelines for optimal use.
