A high frequency induction heater utilizes electromagnetic fields to efficiently heat conductive materials. This technology allows for precise and rapid heating without any direct contact. Recent studies indicate that these Quenching Heat Treating Machines save 50% more energy compared to traditional methods and can operate continuously for 24 hours. Additionally, the induction heating welding segment is projected to reach $155.29 million by 2028.

Key Takeaways

• High frequency induction heaters use magnetic fields to heat metals. They save up to 50% more energy than older methods.

• The shape of the heat coil affects how well it works. Better coil designs can heat faster and use less energy.

• Induction heating is useful in many industries like cars and healthcare. It heats quickly in small areas, stays safe, and avoids heat damage.

Principles of High Frequency Induction Heating

Electromagnetic Induction in Heating

Electromagnetic induction is the foundation of high frequency induction heating. When an alternating current flows through a coil, it generates a magnetic field. This field induces an electric current in nearby conductive materials, creating heat. The process is efficient because the heat is generated directly within the material, eliminating the need for external heating elements.

Numerical simulations have validated the principles of electromagnetic induction in high frequency induction heating. For example:

• Researchers like Bay developed models for heating cylindrical billets, demonstrating computational efficiency.

• Kennedy used COMSOL 2D simulations, confirming that low-frequency analytical solutions align with experimental results.

• Zhang highlighted the skin effect, showing how current density concentrates near the surface of materials, enhancing heat generation.

Eddy Currents and Heat Generation

Eddy currents play a crucial role in heat generation during induction heating. These currents are loops of electrical flow induced within the material by the magnetic field. As they circulate, they encounter resistance, which produces heat. This mechanism ensures rapid and uniform heating, making it ideal for industrial applications.

Technical reports quantify the contribution of eddy currents to heat generation. For instance:

Hysteresis Loss in Induction Heating

Hysteresis loss is another heat generation mechanism in high frequency induction heating. It occurs when magnetic materials resist changes in magnetization, causing energy loss. This loss is represented by the area within the magnetic hysteresis curve.

Experimental studies reveal that hysteresis losses depend on material properties like magnetic permeability. For example, tests on 42CrMo4 steel show how temperature and magnetic fields affect these losses. Although hysteresis losses are less significant in high frequency systems, they still contribute to overall heat generation.

Components of a High Frequency Induction Heating System

Induction Heat Coil and Its Role

The induction heat coil is the heart of a high frequency induction heating machine. It generates the electromagnetic field that heats the target material. You’ll find that its design directly impacts the efficiency and effectiveness of the heating process.

• Studies show that helical coil designs improve heat transfer efficiency, especially in industrial applications.

• Research highlights how coil configurations affect heat transfer rates and water outlet temperatures. For instance, increasing the number of turns in a coil raises the outlet temperature.

• Computational fluid dynamics (CFD) analyses confirm that optimized coil designs reduce heating time and minimize pollution.

These findings emphasize the importance of coil design in achieving precise and energy-efficient heating. Whether you’re heating metals or fluids, the high frequency induction coil ensures uniform and controlled heat distribution.

Power Supply in an Induction Heating System

The power supply is another critical component of the induction heating system. It converts electrical energy into high-frequency alternating current, which drives the induction coil. The efficiency of this process determines how much energy is successfully transferred to the target material.

Modern systems use advanced technologies like resonant tank circuits and IGBT inverters to maximize efficiency. These designs minimize energy losses and ensure stable operation. For example, the resonant tank circuit optimizes the frequency and voltage, while the IGBT inverter provides precise control over power output.

By focusing on these elements, manufacturers have improved the energy efficiency of high frequency induction heating machines. This means you can achieve faster heating with less energy consumption, making these systems ideal for industrial and commercial applications.

Cooling Systems for High Frequency Induction Heating Machines

Cooling systems play a vital role in maintaining the performance and longevity of high frequency induction heating machines. Without proper cooling, components like the induction coil and power supply can overheat, leading to reduced efficiency or system failure.

Most systems use water or air cooling to regulate temperatures. Water cooling is particularly effective for high-power applications, as it absorbs heat quickly and prevents thermal damage. Air cooling, on the other hand, is suitable for smaller systems with lower power requirements.

You’ll notice that advanced cooling designs integrate temperature sensors and automated controls. These features ensure consistent cooling and prevent overheating during continuous operation. By maintaining optimal temperatures, cooling systems enhance the reliability and lifespan of induction heating machines.

Advantages and Applications of Canroon's High Frequency Induction Heating

Benefits of Canroon's High Frequency Induction Heating

Canroon's high frequency induction heating technology offers several advantages that make it a preferred choice for various applications. You benefit from its energy efficiency, precise heating control, and low operational costs. These features ensure that you achieve consistent results while minimizing energy consumption.

Here are some key benefits:

• High-speed longitudinal welding of pipes.

• Low electricity consumption, reducing overall costs.

• Precise control over heating patterns for uniform results.

• Applications in processes like induction hardening, soldering, and annealing.

The performance metrics further validate these advantages:

These benefits highlight why Canroon's technology is a reliable and efficient solution for your heating needs.

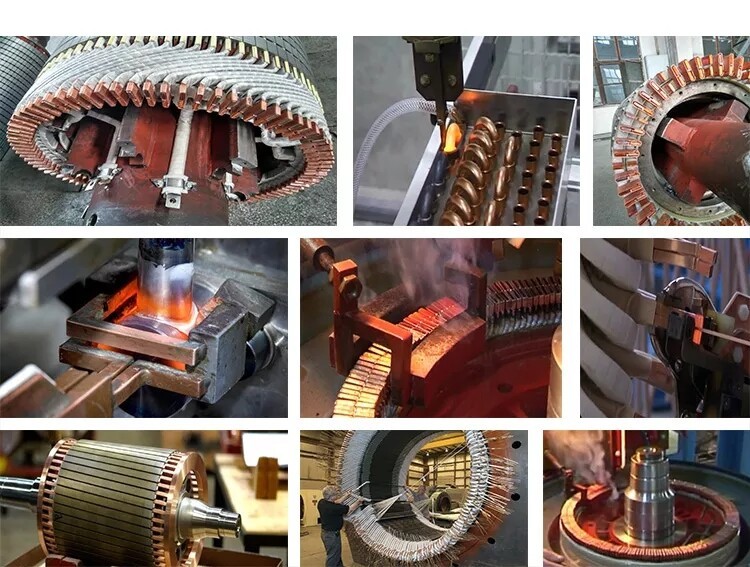

Industrial Applications of High Frequency Induction Heaters

High frequency induction heaters play a vital role in various industrial processes. You can use them for stress relieving, heat treatment, and brazing. For example, in barrel manufacturing, induction heating ensures precise bore honing and enhances durability through controlled heat treatment.

Here’s how industries benefit:

These applications demonstrate how induction heating improves productivity and product quality across industries.

Use in Industry, Medical, and Other Fields

The versatility of high frequency induction heating extends beyond industrial applications. In the medical field, you can rely on this technology for precise and contactless heating, which is essential for processes like sterilization and thermal therapy. Its ability to achieve rapid heating rates and precise temperature control also makes it invaluable in automotive and aerospace industries.

For instance, in the automotive sector, induction heating enhances the efficiency of processes like gear hardening and shrink fitting. In aerospace, it ensures the durability of critical components through precise heat treatment. This adaptability underscores the importance of induction heating in diverse fields, offering you reliable and efficient solutions tailored to your needs.

High frequency induction heaters offer you rapid, precise, and energy-efficient heating solutions. Their ability to provide localized heating ensures safety and reduces thermal damage.

This technology plays a vital role in industries like automotive, aerospace, and medical, proving its importance in modern advancements.

FAQ

What is the role of induction heating current in the heating process?

Induction heating current generates the electromagnetic field that heats the material. It ensures efficient energy transfer and precise temperature control during the induction heating process.

How does induction heating equipment ensure safety?

Induction heating equipment operates without open flames or direct contact. This reduces risks, making it a safer option for industrial and medical applications.

Can induction heating process be used for non-metallic materials?

Yes, but only if the material is conductive or coated with a conductive layer. Non-conductive materials require special adaptations for the induction heating process.
