Using one variable frequency drive (VFD) for multiple motors is not only feasible but also advantageous. This approach offers several benefits:

• Cost Savings: A single high horsepower VFD costs less than multiple smaller ones.

• Reduced Maintenance: You only need to service one VFD, cutting down on time and expenses.

• Improved Efficiency: The system becomes more reliable and efficient, optimizing performance.

By adopting this method, you can streamline operations and enhance the overall efficiency of your motor systems.

Key Takeaways

• Using one VFD for multiple motors can lead to significant cost savings by reducing the need for multiple units and minimizing installation expenses.

• Simplified control through a single interface reduces complexity, making it easier to manage and troubleshoot motor operations.

• Proper VFD sizing is crucial; calculate the total load of all motors to ensure the VFD can handle the combined demand without overheating.

• Implement individual overload protection for each motor to prevent damage from excessive current draw, as a single VFD cannot provide this protection.

• Regular maintenance and inspections are essential to identify potential issues early, ensuring the reliability and efficiency of the motor system.

• Adhering to NEC standards, particularly Article 430, is vital for safety and compliance when using one VFD for multiple motors.

• Focus on energy efficiency by using strategies like V/F control mode to optimize performance and reduce operational costs.

Feasibility of Using One Variable Frequency Drive for Multiple Motors

Using a single variable frequency drive (VFD) to control multiple motors can be a practical and efficient solution. This approach offers several advantages and challenges that you should consider.

Advantages of Using One VFD

Cost Efficiency

When you opt for a single VFD, you can significantly reduce costs. A single high-capacity VFD often costs less than purchasing multiple smaller ones. This cost-saving extends to installation and maintenance, as you only need to manage one unit. Additionally, a single VFD requires fewer electrical components, which can lower the overall expense of your setup.

Simplified Control

A single VFD simplifies the control system. You manage all motors with one interface, reducing complexity. This streamlined control can lead to fewer errors and easier troubleshooting. Moreover, a single VFD dissipates less heat and occupies less space, making it an attractive option for compact installations.

Potential Challenges

Load Imbalance

One challenge you might face is load imbalance. When using a single VFD, all motors receive the same frequency drive output. If the motors have different load requirements, this can lead to inefficiencies. You must ensure that the motors are similar in power ratings to avoid this issue.

Control Complexity

While a single VFD simplifies some aspects, it can introduce control complexity in others. You need to carefully program the VFD to handle the combined load of all motors. This requires precise calculations to ensure that the total load does not exceed the VFD's capacity. Additionally, you must provide separate overload protection for each motor, as the VFD cannot offer individual protection.

By understanding these advantages and challenges, you can make informed decisions about using a single VFD for multiple motors. This approach can lead to cost savings and simplified control, but it requires careful planning to address potential issues like load imbalance and control complexity.

Design Considerations for VFD Sizing and Wiring

When you decide to use a single variable frequency drive (VFD) for multiple motors, careful planning becomes essential. You need to consider both the sizing of the VFD and the wiring requirements to ensure optimal performance and safety.

VFD Sizing for Multiple Motors

Proper VFD sizing is crucial when controlling multiple motors with one VFD. This process involves two main steps:

Calculating Total Load

To begin, you must calculate the total load of all motors combined. Add up the full load amps (FLA) and horsepower (HP) of each motor. This sum will help you determine the total electrical demand on the VFD. Accurate calculations ensure that the VFD can handle the combined load without overloading.

Selecting the Right VFD Capacity

Once you know the total load, select a VFD with a capacity that exceeds this total. The VFD should have a higher rated capacity than the combined load to accommodate any unexpected surges or variations in motor demand. This precaution helps prevent the VFD from operating at its maximum capacity, which can lead to overheating and reduced lifespan.

Wiring Requirements

The wiring setup plays a critical role in the successful operation of a single VFD controlling multiple motors. You need to focus on two key aspects:

Parallel Wiring Techniques

For effective control, connect the motors in parallel. This method ensures that each motor receives the same voltage and frequency from the VFD. Parallel wiring allows for uniform speed and performance across all motors. However, ensure that the wiring can handle the total current drawn by all motors to avoid overheating and potential failures.

Isolation Methods

Isolation methods are vital for protecting each motor. Use individual circuit breakers or fuses for each motor to provide overload protection. This setup prevents a fault in one motor from affecting the others. Additionally, consider using contactors to disconnect motors individually when necessary, offering greater flexibility and safety.

By following these design considerations, you can effectively use a single VFD to control multiple motors. Proper VFD sizing and wiring not only enhance performance but also ensure the longevity and reliability of your motor system.

Protection Circuits for Multiple Motors

When you use a single VFD to control multiple motors, implementing effective protection circuits becomes crucial. These circuits ensure the safety and longevity of your motors by preventing damage from overloads and short circuits.

Overload Protection

Overload protection is essential for safeguarding each motor from excessive current draw. This protection disconnects a motor if it draws more current than normal for an extended period, preventing overheating and potential damage.

Thermal Overload Relays

Thermal overload relays provide a reliable method for protecting motors. They work by using a bimetallic strip that bends when heated by excessive current. This bending action triggers a switch that disconnects the motor from the power supply. Each motor should have its own thermal overload relay to ensure individual protection. This setup aligns with NEC Article 430, which mandates individual motor overload protection on the load side of a VFD.

Electronic Overload Protection

Electronic overload protection offers a more advanced solution. These devices use sensors to monitor the current flowing through each motor. If the current exceeds a preset limit, the device interrupts the circuit, stopping the motor. Electronic overload protection provides precise control and can be adjusted to suit different motor specifications. This flexibility makes it an excellent choice for modern motor systems.

Short Circuit Protection

Short circuit protection prevents damage from sudden surges of current that can occur when a fault creates a direct path between the power supply and ground. Implementing effective short circuit protection is vital for maintaining the integrity of your motor system.

Circuit Breakers

Circuit breakers serve as a primary line of defense against short circuits. They automatically cut off the electrical flow when they detect a fault, protecting the motors and the VFD. Each motor should have its own circuit breaker to ensure that a fault in one motor does not affect the others. This isolation enhances the overall safety and reliability of your system.

Fuses

Fuses offer a simple yet effective form of short circuit protection. They contain a metal wire that melts when exposed to excessive current, breaking the circuit and stopping the flow of electricity. Fuses are inexpensive and easy to replace, making them a practical choice for many applications. Like circuit breakers, each motor should have its own fuse for optimal protection.

By incorporating these protection circuits, you can ensure that your motors operate safely and efficiently. Proper overload and short circuit protection not only extend the life of your motors but also enhance the reliability of your entire motor system.

NEC Requirements and Application Considerations

When using a single variable frequency drive (VFD) to control multiple motors, you must adhere to the National Electrical Code (NEC) standards. These guidelines ensure safety and efficiency in your motor systems.

Compliance with NEC Standards

Article 430 Considerations

Article 430 of the NEC provides comprehensive guidelines for motor installations. It emphasizes the importance of proper VFD sizing and individual motor protection. You should calculate the full load amps (FLA) of all connected motors and select a VFD that can handle this combined load. This ensures that the VFD operates efficiently without overloading. Additionally, Article 430 mandates that each motor must have its own overload protection. This requirement prevents any single motor from drawing excessive current, which could lead to overheating and damage.

"A VFD can't sense which individual motor is drawing high current, necessitating individual overload protection for each motor."

Safety Protocols

Safety protocols play a crucial role in maintaining the integrity of your motor system. You should implement proper wiring techniques and use protective devices like circuit breakers and fuses. These measures protect against short circuits and overloads. Regular inspections and maintenance checks are also essential. They help identify potential issues before they escalate into major problems. By following these safety protocols, you can ensure a reliable and safe operation of your motor system.

Application Scenarios

Industrial Applications

In industrial settings, using one VFD for multiple motors offers several benefits. It reduces costs and simplifies maintenance. Industries often require precise control over motor speed and performance. A single VFD can provide this control, ensuring uniform speed across all motors. This setup is ideal for conveyor systems, pumps, and fans where motors operate simultaneously. By using a centralized VFD, you can streamline operations and enhance productivity.

Commercial Applications

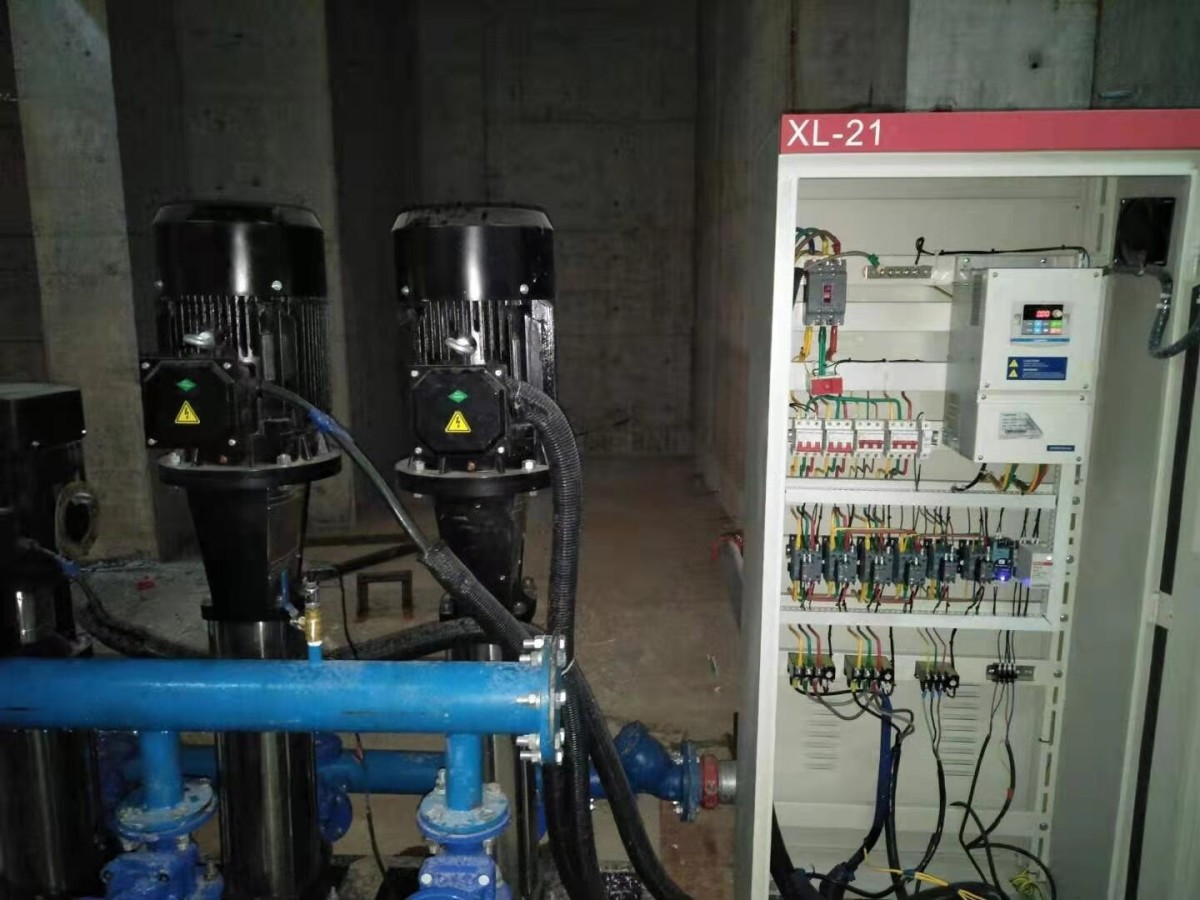

Commercial applications also benefit from using a single VFD for multiple motors. This approach is suitable for HVAC systems, elevators, and escalators. In these scenarios, motors need to operate in sync to ensure smooth and efficient performance. A single VFD provides consistent control, reducing the risk of mechanical failures. Additionally, it minimizes the space required for installation, making it an attractive option for commercial buildings with limited space.

By understanding and applying NEC requirements, you can effectively use a single VFD to control multiple motors. This approach not only enhances performance but also ensures compliance with safety standards. Whether in industrial or commercial settings, a well-designed VFD system can lead to significant cost savings and improved operational efficiency.

Operational Challenges and Solutions

When you use a single variable frequency drive (VFD) to control multiple motors, you may encounter several operational challenges. Addressing these issues effectively can optimize the performance and reliability of your system.

Synchronization Issues

Synchronization is crucial when controlling multiple motors with one VFD. Ensuring that all motors operate harmoniously can prevent mechanical stress and inefficiencies.

Load Sharing Techniques

Load sharing techniques help distribute the workload evenly among the motors. You can achieve this by ensuring that each motor has similar power ratings and load requirements. This balance prevents any single motor from bearing too much strain, which can lead to overheating or failure. By implementing load sharing, you enhance the longevity and efficiency of your motor system.

Speed Matching

Speed matching ensures that all motors run at the same speed, which is vital for applications like conveyor systems or synchronized machinery. The VFD provides a consistent frequency drive output, but you must ensure that each motor's mechanical setup supports this uniform speed. Regular calibration and adjustments can help maintain speed consistency, reducing wear and tear on the motors.

Maintenance Considerations

Proper maintenance is essential for the smooth operation of a VFD system controlling multiple motors. Regular checks and timely interventions can prevent minor issues from escalating into major problems.

Regular Inspections

Conduct regular inspections to identify potential issues early. Check for signs of wear, overheating, or unusual noises in the motors. Inspect the VFD and wiring for any signs of damage or degradation. Regular maintenance helps you catch problems before they affect the entire system, ensuring continuous and efficient operation.

Troubleshooting Common Issues

Troubleshooting common issues quickly can minimize downtime and maintain system efficiency. Familiarize yourself with the typical problems that can arise, such as load imbalances or synchronization errors. Develop a checklist for diagnosing these issues, and keep spare parts on hand for quick repairs. By being proactive, you can address problems swiftly and keep your motor system running smoothly.

By understanding and addressing these operational challenges, you can ensure that your VFD system performs optimally. Implementing effective load sharing and speed matching techniques, along with regular maintenance, will enhance the reliability and efficiency of your motor system.

Best Practices for Using One VFD with Multiple Motors

When you decide to use a single variable frequency drive (VFD) for controlling multiple motors, following best practices ensures optimal performance and longevity. These practices cover both installation and operational aspects.

Installation Tips

Proper Grounding

Proper grounding is crucial for the safe and efficient operation of your VFD system. You should ensure that all motors and the VFD are correctly grounded to prevent electrical faults. Grounding helps protect the system from voltage spikes and reduces the risk of electrical shock. It also minimizes electromagnetic interference, which can affect the performance of the motors. By grounding your equipment properly, you enhance the safety and reliability of your motor system.

Environmental Considerations

Environmental factors play a significant role in the performance of your VFD and motors. You need to consider the ambient temperature, humidity, and dust levels in the installation area. High temperatures can cause the VFD and motors to overheat, leading to premature failure. Ensure adequate ventilation and cooling to maintain optimal operating conditions. Additionally, protect the equipment from dust and moisture by using enclosures or filters. By addressing these environmental considerations, you can extend the lifespan of your VFD and motors.

Operational Guidelines

Monitoring and Control

Effective monitoring and control are essential for maintaining the efficiency of your VFD system. You should regularly check the performance of the motors and the VFD to identify any anomalies. Use monitoring tools to track parameters such as current, voltage, and temperature. This data helps you detect potential issues early and take corrective actions. Implementing a robust control system allows you to adjust the VFD settings as needed, ensuring that all motors operate at their optimal performance levels.

Energy Efficiency Strategies

Energy efficiency is a key consideration when using one VFD for multiple motors. You can implement strategies to reduce energy consumption and lower operational costs. For instance, use the V/F (voltage/frequency) control mode, which maintains a constant voltage-to-frequency ratio across all motors. This approach ensures uniform speed control and reduces energy waste. Additionally, consider using energy-efficient motors and optimizing the load distribution among them. By focusing on energy efficiency, you not only save costs but also contribute to a more sustainable operation.

By adhering to these best practices, you can maximize the benefits of using a single VFD with multiple motors. Proper installation and operational strategies enhance the performance, safety, and efficiency of your motor system, ensuring long-term success.

Using one VFD for multiple motors offers several benefits. You can enjoy cost savings, reduced footprint, and simplified control. This approach proves advantageous in various applications, such as fans and pumps, where running multiple motors from a central VFD enhances efficiency. By following best practices, like proper grounding and regular maintenance, you ensure optimal performance and longevity. Embrace this method to streamline operations and boost your motor system's reliability.

FAQ

Is it possible to run multiple motors at the same time with one VFD?

Absolutely, you can run multiple motors simultaneously with a single VFD. This setup is particularly beneficial for applications like fans and pumps, where motors need to operate in sync. However, ensure that the total load does not exceed the VFD's capacity.

What are the benefits of using one VFD for multiple motors?

Using one VFD for multiple motors offers several advantages. It saves money, reduces the system's footprint, and simplifies maintenance. This method also enhances efficiency by providing uniform control across all motors.

Do I need separate overload protection for each motor?

Yes, each motor requires its own overload protection. A VFD cannot provide individual protection for multiple motors. Use thermal overload relays or electronic overload protection to safeguard each motor from excessive current draw.

How does using one VFD affect maintenance?

Using one VFD simplifies maintenance. You only need to service one unit, which reduces time and expenses. Regular inspections and timely interventions help maintain the system's efficiency and prevent potential issues.
