A Variable Frequency Drive (VFD) is a device that adjusts the frequency and voltage of the power supplied to electric motors, allowing precise control over their speed and torque. To understand the VFD meaning, it’s essential to recognize its role in optimizing motor performance, ensuring efficiency, and minimizing unnecessary energy consumption.

VFDs are vital for enhancing industrial efficiency. For instance, industries utilizing VFDs in HVAC systems can achieve energy savings of up to 70%, while water treatment facilities report savings of around 60%. By cutting energy usage, VFDs not only reduce operational costs but also help lower carbon emissions, supporting global climate initiatives.

Did you know? The VFD meaning extends beyond energy savings—less than 20% of electric motors currently use VFDs, highlighting a significant opportunity for further advancements in energy efficiency.

Key Takeaways

• VFDs can cut energy use by half, saving money in industries.

• Knowing VFD parts, like rectifiers and inverters, shows how they improve motors.

• VFDs in HVAC and factories boost control, save energy, and last longer.

VFD Meaning and Key Components

What is a VFD?

A Variable Frequency Drive (VFD) is a device that controls the speed and torque of electric motors by adjusting the frequency and voltage of the power supplied to them. You can think of it as a tool that allows you to fine-tune motor performance based on specific needs. This flexibility makes VFDs essential in industries where precision and efficiency are critical. By understanding the VFD meaning, you’ll see how it plays a key role in reducing energy consumption and improving operational control.

Main Components of a VFD

A VFD consists of several components working together to regulate motor speed and performance. Each part has a specific function that contributes to the overall operation. Here’s a breakdown of the primary components:

• Rectifier: Converts AC power to DC power.

• DC Bus: Buffers and stores the DC power.

• Inverter: Converts DC power back to AC with variable frequency.

• Controller: Adjusts output based on motor requirements.

• Operator Interface: Lets you set parameters and monitor performance.

• Feedback Devices: Provide motor speed and position data.

• Braking System: Helps decelerate the motor.

• Cooling System: Prevents overheating.

• EMI Filters: Reduce electromagnetic interference.

• Protection Features: Safeguard against electrical faults.

Rectifier, DC Bus, and Inverter Overview

The rectifier, DC bus, and inverter form the core of a VFD. The rectifier converts incoming AC power into DC power. The DC bus stores this power temporarily, ensuring a steady supply for the inverter. Finally, the inverter transforms the DC power back into AC power with adjustable frequency and voltage. This process allows you to control motor speed with precision, making these components vital to the VFD’s functionality.

Tip: Understanding these components helps you appreciate how VFDs optimize motor performance and energy efficiency.

How a VFD Works

Rectification Process

The rectification process is the first step in how a VFD operates. It converts alternating current (AC) power from the electrical grid into direct current (DC) power. This conversion is essential because DC power provides the stability needed for precise motor control. The rectifier, a key component of the VFD, performs this task by using diodes or thyristors to ensure a smooth flow of electricity. Without this step, the VFD cannot regulate motor speed effectively.

Fun Fact: The rectification process is what allows a VFD to handle varying power demands without compromising performance.

DC Link Functionality

The DC link, also called the DC bus, plays a critical role in stabilizing power delivery. It acts as an energy reservoir, ensuring the inverter receives a constant supply of DC power. Here’s how it works:

• It stabilizes voltage and filters out fluctuations, preventing disruptions in motor operation.

• It captures and stores regenerative energy, improving efficiency and reducing energy waste.

• It protects the VFD and motor from electrical disturbances by maintaining stable DC voltage.

This functionality ensures the VFD operates reliably, even under challenging conditions. By maintaining consistent power, the DC link helps you achieve better motor performance and energy savings.

Inversion and Motor Control

The final step in a VFD’s operation is the inversion process. The inverter converts the stable DC power back into AC power, but with a twist—it adjusts the frequency and voltage to match the motor’s requirements. This adjustment gives you precise control over motor speed and torque. Modern VFDs use advanced technologies like vector control and direct torque control to enhance accuracy. These advancements allow you to optimize motor performance for various applications, from HVAC systems to heavy machinery.

Did you know? Recent innovations in VFD technology, such as GaN and SiC transistors, have improved energy efficiency to nearly 98%, making them even more effective for industrial use.

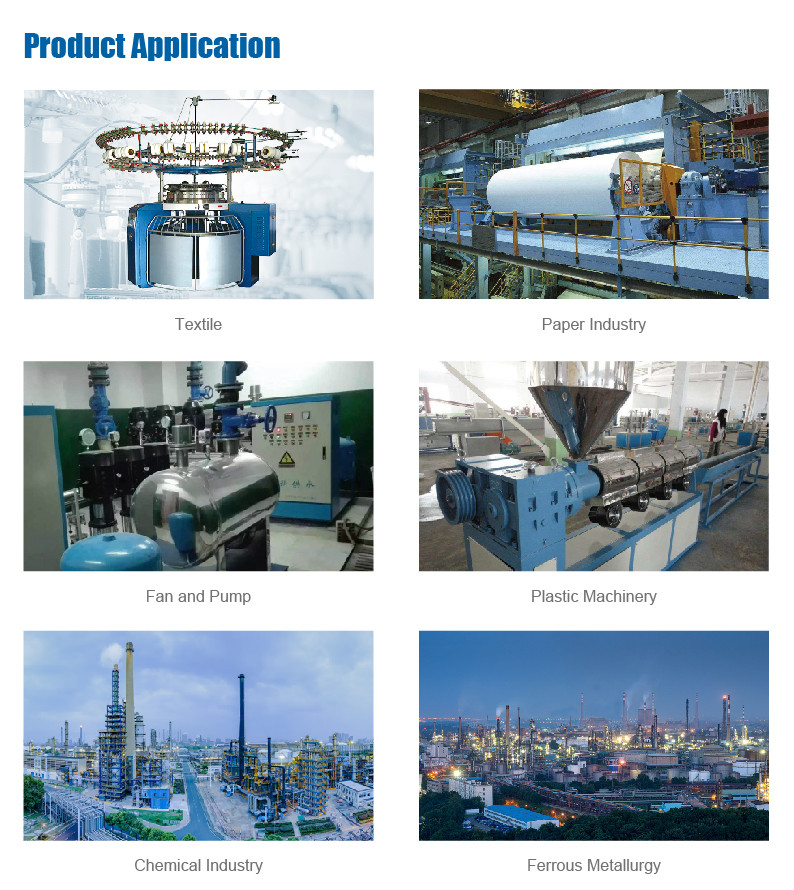

Applications of VFDs in Industries

HVAC Systems

You’ll find VFDs playing a crucial role in HVAC systems by improving energy efficiency and operational control. They regulate the speed of fans and pumps, ensuring optimal performance. For example:

• VFDs adjust fan speeds in air handling units to maintain proper air pressure and airflow.

• They optimize compressor speeds in chillers, enhancing cooling capacity.

• In cooling towers, VFDs control fan speeds to stabilize water temperatures.

• They enable variable flow rates in chilled and hot water pumping systems.

By using VFDs, you can also reduce energy usage during peak loads and minimize wear on HVAC components. This not only extends equipment life but also lowers maintenance costs.

Manufacturing and Automation

In manufacturing, VFDs help you achieve significant energy savings by matching motor speed to load requirements. This is especially useful in processes with varying loads, such as conveyor systems or robotic arms. Key benefits include:

• Motors operate at variable speeds, reducing unnecessary energy consumption.

• A small speed reduction can lead to substantial energy savings due to the cubic relationship between speed and power.

• VFDs eliminate the need for mechanical drive components, cutting costs further.

By integrating VFDs, you can reduce energy use by up to 50%, making them essential for sustainable manufacturing practices.

Water Treatment Plants

Water treatment plants rely on VFDs to optimize operations and improve efficiency. You can use VFDs to adjust pump speeds, ensuring proper flow velocity even during low sewage flow periods. Other advantages include:

• Energy savings through variable motor speeds, reducing costs.

• Better process control, resulting in improved water quality.

• Soft start and stop functions that prevent stress on aging pump systems.

With VFDs, you can also protect infrastructure from damage caused by full voltage starts, ensuring long-term reliability.

Mining and Heavy Industries

In mining and heavy industries, VFDs enhance safety and efficiency. They provide smooth motor starts and stops, reducing mechanical stress and preventing accidents. Here’s how they help:

• VFDs control conveyor speeds, saving energy and extending equipment life.

• They adjust pump speeds to prevent damage and reduce energy consumption.

• In ventilation systems, VFDs regulate fan speeds to maintain safe underground conditions.

• They offer precise control in drilling machines and crushers, improving performance.

By optimizing motor speed, VFDs also reduce overheating risks, ensuring safer operations in hazardous environments.

Tip: VFDs in mining often feature explosion-proof enclosures and integrate with safety systems for quick emergency shutdowns.

Benefits of VFDs

Energy Savings and Cost Efficiency

VFDs offer significant energy savings, especially in applications with varying loads like pumps and fans. Electric motors consume about one-fourth of the world's electrical energy. By using VFDs, you can reduce energy consumption by up to 50%, leading to substantial savings on electricity bills. For example, a VFD can save 450 kWh of power daily, which translates to $16,425 annually if energy costs $0.10 per kWh. These savings make VFDs a cost-effective solution for industrial operations.

Although the initial investment in VFDs may seem high, the long-term benefits outweigh the costs. VFDs provide soft starting and stopping capabilities, reducing mechanical stress and maintenance needs. This feature alone can save you 20% to 50% on energy costs, making them an excellent choice for sustainable operations.

Improved Process Control

VFDs enhance process control by allowing you to adjust motor speed and torque based on specific requirements. In paper machines, VFDs enable slow startups, ensuring smooth operation. Grinding mills benefit from speed adjustments that compensate for ore density changes, improving energy efficiency without sacrificing quality. In chemical production, VFDs maintain tighter temperature control, enhancing product quality and production efficiency.

You can also use VFDs to optimize performance in HVAC systems, where they control fan and pump speeds. This reduces energy consumption and improves operational efficiency. By matching motor speed to load requirements, VFDs help you achieve better control and reduce power usage, which is crucial since electric motors account for over 65% of industrial power consumption.

Reduced Maintenance Costs

VFDs significantly reduce maintenance costs by minimizing mechanical stress on motors and components. Soft starts and stops prevent wear and tear, extending equipment life. This leads to fewer breakdowns and longer maintenance intervals. For example, traditional systems experience higher mechanical stress, resulting in more frequent breakdowns. In contrast, VFDs ensure smoother operation, reducing the need for repairs.

By using VFDs, you can lower maintenance costs and improve the reliability of your equipment. Regular maintenance, such as cleaning and inspecting connections, ensures optimal performance and extends the lifespan of your VFD system.

Understanding the VFD meaning reveals its transformative role in modern industries. You’ve seen how its components and processes enhance motor control and efficiency. From HVAC systems to renewable energy, VFDs reduce energy consumption by up to 50%. Their ability to lower costs, improve operations, and support sustainability makes them indispensable in today’s industrial landscape.

FAQ

What is the lifespan of a VFD?

A VFD typically lasts 10-15 years with proper maintenance. Regular cleaning, inspecting connections, and avoiding overheating can extend its lifespan. Always follow the manufacturer’s maintenance guidelines.
