A bolt induction heater uses electromagnetic induction to heat bolts quickly and efficiently. This process eliminates open flames, reducing safety risks. Industries like oil and gas and power generation increasingly adopt this technology for its precision and energy efficiency. Modern induction heater machines, including IGBT induction heaters, also support sustainability goals by minimizing emissions.

Key Takeaways

• Bolt induction heating uses magnets to heat bolts fast and safely. It avoids open flames and lowers fire dangers.

• This method saves time by heating bolts in minutes. It works faster than old ways, cutting delays in factories.

• Induction heating is good for the environment. It lowers pollution and uses less energy, making it a smart choice for today’s industries.

How a Bolt Induction Heater Works

The Science of Electromagnetic Induction

Induction heating relies on the principles of electromagnetic induction to generate heat within conductive materials. Here's how it works:

• An alternating current (AC) flows through an induction coil, creating a rapidly changing magnetic field.

• When a conductive object, such as a metal bolt, is placed in this field, eddy currents are induced within the material.

• These eddy currents produce heat due to electrical resistance, a phenomenon known as Joule heating.
  This process is highly efficient because it directly heats the bolt without requiring physical contact or external flames. Induction heating also uses radio frequency (RF) energy, ensuring precise and controlled heating.

Components of a Bolt Induction Heater

A bolt induction heater consists of several key components that work together to deliver efficient heating:

1. Power Unit: Converts standard electrical power into a higher frequency suitable for induction heating.

2. Work Head: Connects the power unit to the work coil, ensuring energy transfer.

3. Work Coil: Generates the magnetic field that induces heat in the bolt.

4. Water Cooling System: Prevents overheating of the induction coil, ensuring consistent performance and durability.
   Each component plays a vital role in ensuring the heater operates effectively and safely.

The Heating Process Explained

Using a bolt induction heater involves a straightforward process:

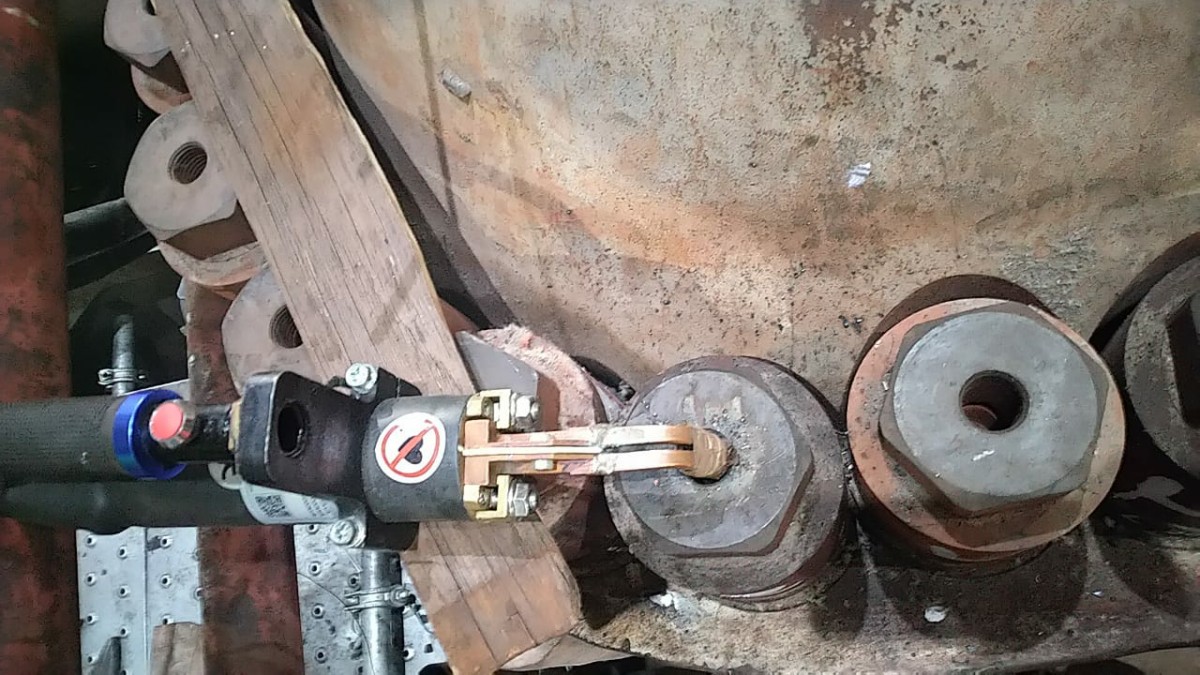

1. Coil Placement: Position the induction coil around the bolt for optimal heat transfer.

2. Electromagnetic Field Generation: Activate the power unit to create a magnetic field, inducing eddy currents in the bolt.

3. Controlled Heating: Adjust the power settings to achieve uniform heating without damaging nearby components.

4. Temperature Monitoring: Use sensors to track the bolt's temperature, ensuring it reaches the desired level.
   This method ensures precise and efficient heating, making it ideal for industrial applications.

Benefits of Using a Bolt Induction Heater

Energy Efficiency and Cost Savings

Using a bolt induction heater can significantly reduce energy consumption and operational costs. Unlike traditional methods, induction heating directly targets the bolt, minimizing heat loss to the surrounding area. This efficiency not only saves energy but also speeds up the process. For example:

1. Conventional heating required 19 minutes to achieve 0.2% residual strain in a 5-inch diameter bolt.

2. Induction heating achieved the same result in just 3.25 minutes.

3. Lower maximum temperatures reduced heat conduction into nearby structures.

These time savings translate to reduced downtime in industrial operations. In one case, induction heating saved two days of outage time during a power station emergency, showcasing its potential for cost savings. Faster heating means less energy wasted, making it a smart choice for industries aiming to cut expenses.

Precision and Safety in Heating

Induction heating offers unmatched precision. You can control the temperature to ensure uniform heating, which is crucial for bolts made of specific materials. This method eliminates open flames, reducing fire risks and enhancing workplace safety. Modern bolt induction heaters include features like automatic shut-off and overheat protection, preventing accidents and equipment damage. These safety measures make induction heating a reliable option for industrial applications.

Environmental Advantages

Induction heating is an eco-friendly technology. It uses clean electromagnetic energy, reducing reliance on fossil fuels like oil or gas. This results in lower carbon emissions and minimal waste. By delivering heat directly to the bolt, it optimizes energy use and reduces environmental impact. Additionally, induction heating supports resource conservation by enabling the recovery of valuable materials from waste. Its precise nature minimizes emissions, contributing to a greener manufacturing process.

Applications of Bolt Induction Heating

Industrial Use Cases

Bolt induction heating plays a vital role in various industries due to its efficiency and precision. You’ll find it commonly used for:

• Heating bolts and nuts to simplify assembly or disassembly.

• Automotive assembly lines, where it ensures proper torque and clamping force during fastener installation.

• Power generation facilities, particularly for turbine maintenance and refurbishment.

This technology’s ability to deliver controlled heat makes it indispensable in these settings. For example, in automotive manufacturing, it allows bolts to expand uniformly, ensuring a secure fit and reducing the risk of mechanical failure.

Common Scenarios for Bolt Heating

Certain scenarios demand the unique capabilities of bolt induction heating. You might encounter it in:

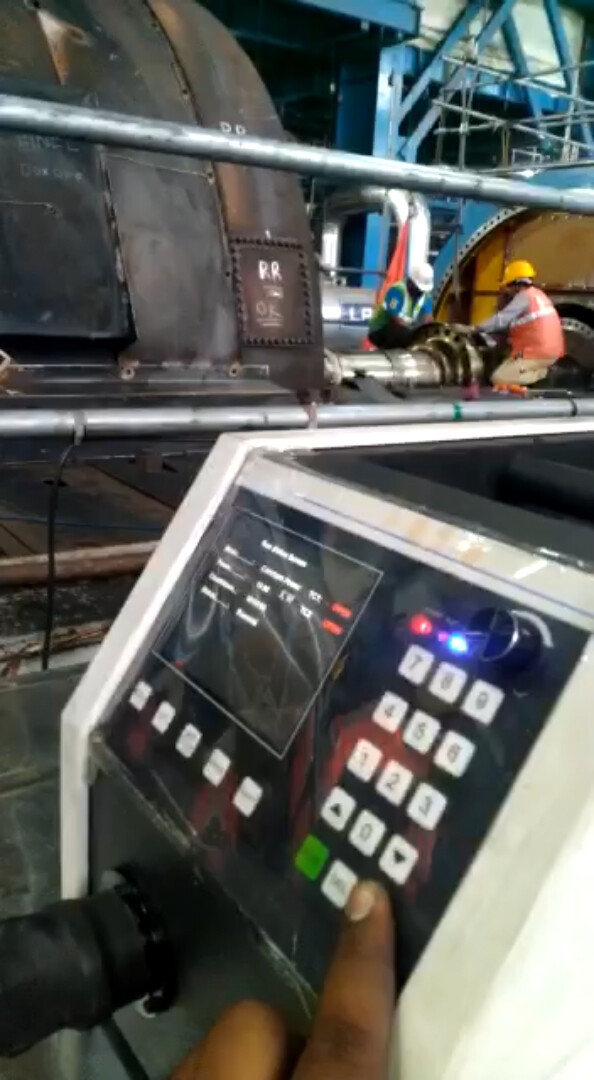

• Turbine Maintenance: It’s ideal for detensioning bolts quickly, minimizing downtime during critical repairs.

• Emergency Outages: In one case at Hendrena, South Africa, this method saved two days of outage time during a steam turbine emergency.

• Thermal Stretching: Induction heating provides faster and more accurate results compared to traditional methods, making it essential for turbine refurbishment.

These scenarios highlight how this technology excels in time-sensitive and precision-driven tasks.

Examples of Specific Applications

Industries worldwide have successfully implemented bolt induction heating. Here are a few examples:

These examples demonstrate the versatility and effectiveness of bolt induction heating across different sectors.

Equipment for Bolt Induction Heating

Features of Modern Induction Heaters

Modern bolt induction heaters come equipped with advanced features that enhance their performance and usability. These features include:

• Power output: Available in various levels to accommodate different bolt sizes and materials.

• Temperature control: Built-in systems ensure precise heating without damaging the bolt or surrounding components.

• Safety features: Automatic shut-off and overheat protection safeguard both the operator and the equipment.

• Versatility: Designed to work with a wide range of bolt sizes and types.

• Efficiency: Heats bolts quickly, reducing downtime and energy consumption.

• Durability: Constructed with robust materials to withstand regular industrial use.

These features make modern induction heaters reliable and efficient tools for industrial applications.

Innovations in Heating Technology

Recent innovations in bolt induction heating technology have revolutionized industrial processes. Induction heating now outperforms traditional methods by delivering faster, more precise, and damage-free heating. For instance, INTEGRA’s advanced systems allow you to loosen or tighten turbine bolts in minutes, significantly reducing outage times. This technology also prevents burn injuries and preserves bolt metallurgy, ensuring safety and longevity.

Case studies highlight its efficiency. At Hendrena, induction heating thermally elongated 26 bolts in just 31 minutes, compared to 130 minutes using traditional methods. Similarly, Theiss B reduced a four-day operation to two days by heating and detensioning 262 bolts. These advancements demonstrate how induction heating saves time and enhances safety in high-pressure applications.

Maintenance and Operational Tips

Proper maintenance ensures your bolt induction heater operates efficiently and lasts longer. Follow these tips:

• Use appropriate fasteners, such as 300-series stainless steel bolts with heavy brass washers, to distribute loads evenly.

• Maintain water cooling systems by keeping the water temperature below 70°F to prevent overheating.

• Install a filtration unit to ensure clean water flow and avoid low-flow conditions that could damage components.

• Add flow indicators to monitor water flow and prevent operation during low or no-flow conditions.

By adhering to these practices, you can maximize the performance and lifespan of your equipment while minimizing the risk of failures.

Bolt induction heaters offer you unmatched efficiency, precision, and safety for industrial applications. Key benefits include:

• Time Savings: Rapid heating reduces downtime.

• Environmental Benefits: Lower emissions and energy use.

• Enhanced Quality: Uniform heating improves durability.

Induction heating minimizes risks, speeds up processes, and supports sustainability, making it a smart choice for modern industries.

FAQ

What types of bolts can you heat with an induction heater?

You can heat most metal bolts, including stainless steel, carbon steel, and alloy bolts. Non-conductive materials like plastic cannot be heated.

How do you ensure safety while using a bolt induction heater?

Always follow the manufacturer’s guidelines. Use protective gear, monitor temperatures, and ensure the water cooling system functions properly to prevent overheating.

Can induction heating damage the bolt?

No, induction heating provides controlled and uniform heat. It preserves the bolt’s structural integrity when used correctly, avoiding damage or weakening.
